CC-09 – Radon Barrier, DPC and DPM Continuity Detail
£5.99
Maintain gas and moisture protection at the floor perimeter with this radon barrier detail covering DPC connections, sealed laps and penetrations.
Planning your overall budget? Estimate the build cost of this design.
✅Always In Stock ✅Instant Downloads ✅Free Delivery on Printed Plans ✅14-Day Money Back Guarantee (details)
Want a sneak preview before you buy? Click here. To download a free set of house plans: Click here.

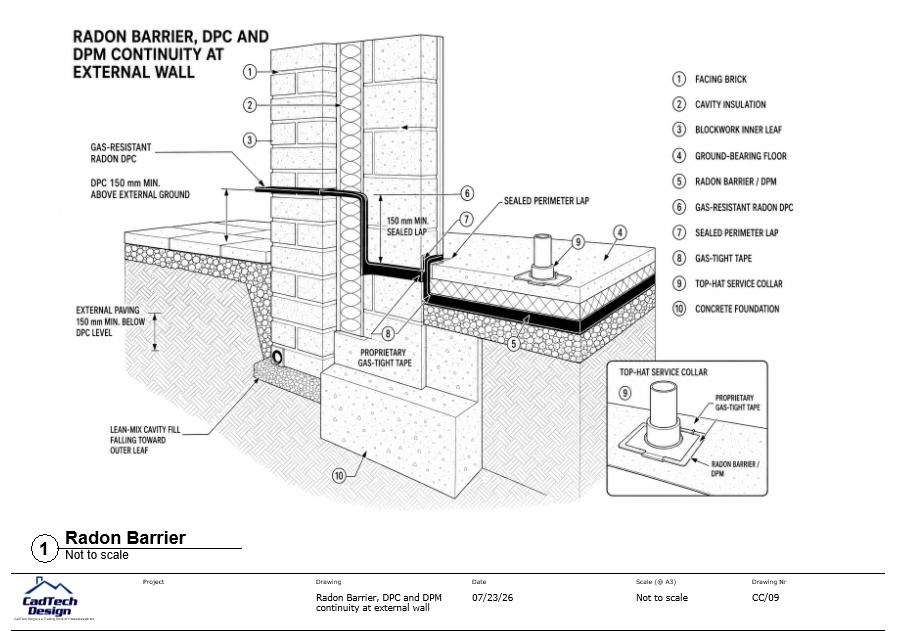

Radon barrier detail: This external-wall drawing shows how a gas-resistant membrane beneath a ground-bearing floor should connect continuously with the damp-proof course.
The detail coordinates the facing brickwork, cavity insulation, blockwork inner leaf, floor construction and concrete foundation. It includes a gas-resistant radon DPC, a minimum 150mm sealed perimeter lap, proprietary gas-tight tape and a top-hat collar around service penetrations.
External paving is maintained below DPC level, while lean-mix cavity fill falls towards the outer leaf. The arrangement helps prevent radon or ground moisture bypassing the protective membrane. It is suitable where ground-gas protection is required, subject to the site-specific assessment and membrane manufacturer’s instructions. For statutory guidance, see Approved Document C on GOV.UK, or coordinate it with our change-of-ground-level wall detail.
