Open Web Joists Explained

Open Web Joists Explained: A Complete Guide to Metal-Web and Open-Web Domestic Floor Systems

Published by Houseplansdirect, Version 3.0 of this technical guide provides 3D construction models, structural breakdowns, and regulatory guidance for specifying, installing, and inspecting open-web floor joist assemblies in domestic buildings across England.

Key Topics Covered

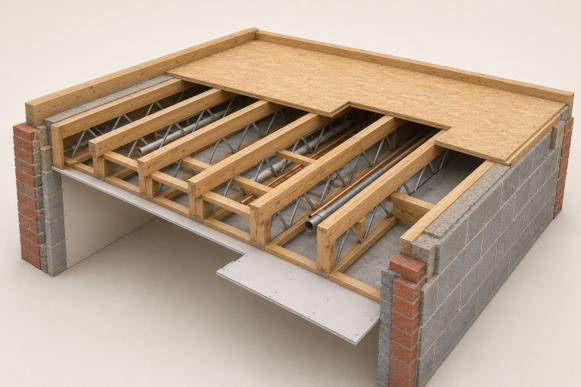

• Core Principles & System Anatomy: Defines engineered open-web joist assemblies using parallel timber top and bottom chords connected by triangulated timber or pressed-metal webs. Highlights how the deep open-web void allows service passage without structural drilling.

• Structural Behavior & Load Paths: Details load-transfer mechanics from floor decking through compression chords and web shear paths to masonry bearings, beams, or joist hangers. Covers structural rules for doubled members, girder joists, and trimmed openings around stairwells.

• Assembly, Vibration & Stability: Outlines requirements for lateral restraint, rim members, blocking, and transverse strongback installation to control floor vibration, deflection, and dynamic response.

• Services, Acoustic & Fire Integration: Outlines spatial coordination for soil, waste, water, electrical, and ventilation runs through natural web openings. Details tested ceiling build-ups (resilient bars, plasterboard layers, acoustic quilt) to meet fire resistance and acoustic separation standards.

• Compliance & Defect Prevention: Aligned with Building Regulations Approved Documents A (Structure), B (Fire Safety), C (Moisture), E (Sound), L (Energy), and P (Electrical Safety). Features an illustrated troubleshooting matrix for critical site defects (e.g., cut or notched chords/webs, missing hanger fixings, omitted strongbacks, short bearings), a staged inspection checklist with hold points, a technical glossary, and FAQs.

For the wider lightweight-construction context, see our Timber Frame Construction Explained guide. The government’s Approved Document A provides technical guidance on structural floors and load paths.
