TB/21 – 600 mm High Projecting Brick Plinth

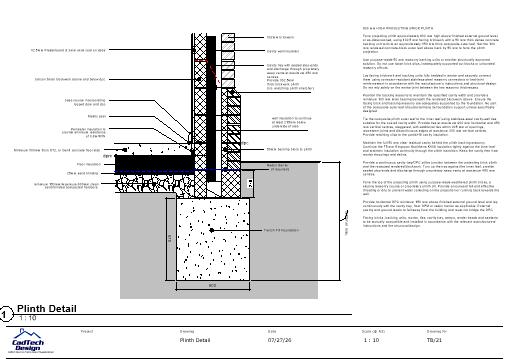

This professionally prepared construction detail illustrates a typical 600 mm high projecting facing-brick plinth beneath a recessed external wall.

The plinth is formed using facing brickwork with a dense concrete backing unit to create a composite outer leaf and provide support beneath the rendered masonry above.

The detail is intended for architectural designers, building professionals, contractors, developers and self-builders preparing residential construction or Building Regulations information.

The detail shows:

• Approximately 600 mm high projecting brick plinth
• 102.5 mm facing brick outer leaf
• 50 mm dense concrete backing unit
• Recessed rendered blockwork above
• Purpose-made weathered plinth brick or sloping cill
• Outward fall and effective drip
• Stainless-steel masonry connectors
• Cavity-wall ties and insulation-retaining clips
• 50 mm clear residual cavity
• Partial-fill cavity-wall insulation
• Continuous cavity tray with sealed stop ends
• Proprietary weep vents
• DPC, floor DPM and optional radon-barrier continuity
• Ground-bearing floor construction
• Perimeter insulation
• Trench fill foundation support

The accompanying notes cover plinth construction, composite masonry support, connectors, cavity-wall ties, insulation continuity, cavity trays, weep vents, DPC positioning, ground levels and material compatibility.

What You Will Receive

• One downloadable PDF construction drawing
• A3 landscape sheet
• Drawn at 1:10 when printed at 100% on A3 paper
• Drawing reference: TB/21
• Detail title: Plinth Detail

Important Information

This is a standard construction detail intended to provide general guidance. The plinth height, masonry dimensions, backing units, connections, foundation support and wall ties must be coordinated with the project’s structural design and selected materials.

The composite outer leaf must be fully supported by the foundation. Loose brick slips, unsupported cut blocks and unbonded masonry offcuts should not be used to form the backing.

Foundation dimensions and depths must be confirmed to suit the site and ground conditions. The drawing does not include structural calculations, ground investigation, thermal assessment or Building Regulations approval.

The PDF is supplied for use by the purchaser on their own projects. It may not be resold, redistributed or reproduced for commercial resale without written permission.
