Timber ground floors explained through structural diagrams, construction details and practical guidance for self-builders, designers and site teams.
Timber Ground Floors Explained: A Complete Guide to Suspended Timber Ground-Floor Construction
Published by Houseplansdirect, Version 3.0 of this technical guide provides structural diagrams, system breakdowns, and regulatory guidance for designing, installing, upgrading, and inspecting suspended timber ground floors in England.
Key Topics Covered
-

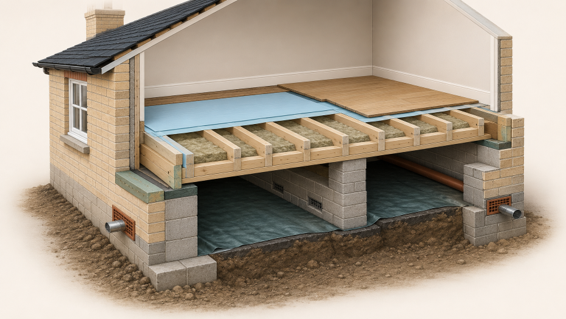

Core Principles & System Selection: Defines suspended timber assemblies spanning above subfloor voids. Compares strength-graded solid timber joists with engineered I-joists, intermediate sleeper wall supports, and retrofitting/insulating existing timber floors.
-
Structural Behavior & Load Paths: Details load transfer from floor decking through joists, wall plates, hangers, and sleeper walls to foundations. Covers lateral restraint (blocking, strutting, rim boards) and strict structural limits for service notches and drill holes.
-
Anatomy & Subfloor Void Moisture Management: Visual breakdowns of floor build-ups, joist bearings, DPC separation, oversite ground preparation, and subfloor cross-ventilation mechanics using external air bricks and telescopic ducts.
-
Insulation, Airtightness & Service Integration: Details methods for supporting full-depth insulation between joist bays, establishing warm-side airtightness and vapour-control layers, routing pipe/cable services without structural compromise, and incorporating underfloor heating.
-
Compliance & Defect Prevention: Aligned with Building Regulations Approved Documents A (Structure), C (Site Preparation & Moisture), L (Conservation of Fuel & Power), F (Ventilation), B (Fire Safety), Regulation 7, and BS 5250. Features an illustrated troubleshooting matrix for common site defects (e.g., blocked air bricks, rotting joist ends, oversized notches, unanchored/gapped insulation), a staged inspection checklist with hold points, a technical glossary, and FAQs.
Compare this system with our guide to beam and block floors. The wider requirements for site preparation, moisture resistance and subfloor ventilation are covered by Approved Document C.
Timber Ground Floors Explained
£1.99
Understand how suspended timber ground floors are designed, insulated, ventilated and inspected, with practical guidance on junctions, services and common defects.
Preview This Document
Want to see what’s included before downloading? Click here to see the flipbook preview to view sample pages and get a feel for the document’s layout, content and level of detail.
The preview is provided for illustration and may show selected pages only.
