TR-10 – External Corner

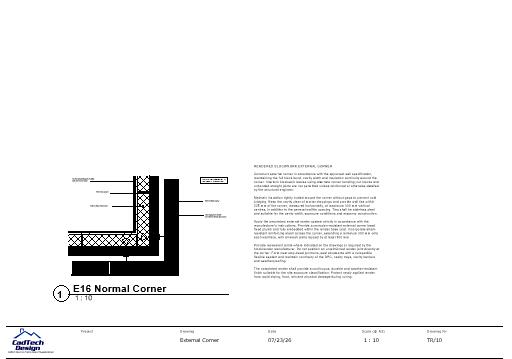

This detailed construction drawing shows the formation of an external corner in a rendered masonry cavity wall with partial-fill rigid insulation.

The drawing illustrates the bonding of the inner and outer blockwork leaves, continuation of the clear residual cavity, rigid cavity insulation and internal plasterboard finish around the corner. It demonstrates how masonry bonding, insulation, wall ties and the external render system should be coordinated to maintain structural stability, thermal continuity and weather resistance.

Supporting notes cover:

• Alternate masonry bonding at the external corner.
• Continuity of the cavity and insulation.
• Prevention of mortar bridging and cold spots.
• Additional wall ties adjacent to the corner.
• Stainless-steel wall-tie requirements.
• External render corner beads.
• Alkali-resistant render reinforcement mesh.
• Movement-joint coordination.
• Weatherproof sealing and render protection during curing.
• Junction SAP reference E16 and the calculated PSI value shown on the drawing.

The customer receives one downloadable PDF construction detail, drawn at 1:10 and arranged to fit an A3 sheet.

This is a typical construction detail and must be coordinated with the project’s wall specification, structural requirements, exposure conditions and proprietary render-system instructions.
