CC-10 – Egress Window Detail
£5.99
Show compliant emergency escape provision with this illustrated egress window detail covering clear opening area, dimensions, height and operation.
Planning your overall budget? Estimate the build cost of this design.
✅Always In Stock ✅Instant Downloads ✅Free Delivery on Printed Plans ✅14-Day Money Back Guarantee (details)
Want a sneak preview before you buy? Click here. To download a free set of house plans: Click here.

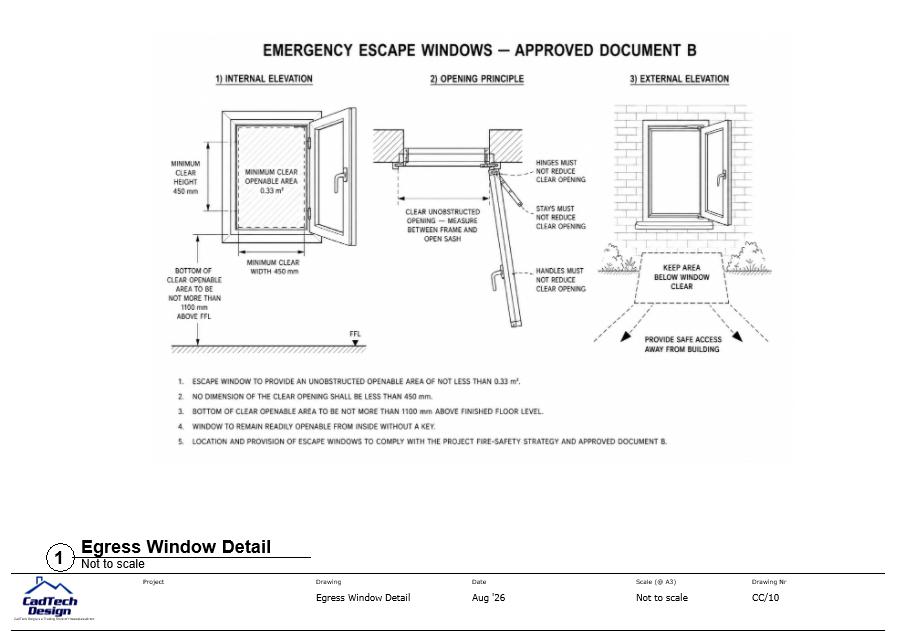

Egress window detail: This illustrated drawing sets out the dimensional and operational requirements for emergency escape windows within dwellings.
Internal and external elevations show a typical escape window with a minimum unobstructed openable area of 0.33m² and no clear opening dimension below 450mm. The bottom of the clear opening is shown no more than 1100mm above finished floor level.
The opening principle demonstrates how hinges, stays and handles must not reduce the required clear area. The window should remain readily openable from inside without a key, with the external area beneath kept clear to provide a safe route away. Final provision must be coordinated with the project fire strategy. For statutory guidance, see Approved Document B on GOV.UK, or review our complementary smoke and heat alarm layout.
