ICF Walls Explained

ICF Walls Explained: A Complete Guide to Insulated Concrete Formwork for Low-Rise Housing

Published by Houseplansdirect, Version 3.0 of this technical guide provides structural details, system diagrams, and regulatory guidance for designing, erecting, and inspecting insulated concrete formwork (ICF) walls in England.

Key Topics Covered

• Core Principles & System Selection: Explores the fundamental structure of permanent EPS insulation forms housing a reinforced concrete core. Compares modular block, large panel, and plank systems, including core width selection and proprietary certification requirements.

• Structural & Environmental Performance: Details structural load-transfer mechanics from roofs, floors, and lateral wind loads into reinforced cores. Explains thermal mass dynamics, low U-value continuity, sub-floor integration, and using the concrete core as a primary air-barrier layer.

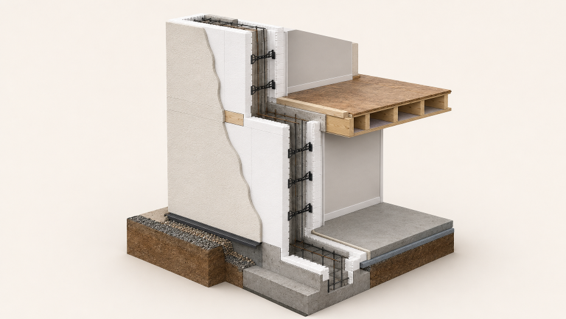

• Anatomy & Critical Junctions: Visual breakdowns of multi-layer wall build-ups, including external basecoat render/cladding systems, internal plasterboard linings, opening bucks, lintel reinforcement, starter bars, and floor-to-wall interfaces.

• Erection, Pour Management & Services: Step-by-step installation sequencing from first-course leveling and wall bracing to controlled concrete lifts, pump management, and compaction. Details service chasing limits, cast-in sleeves, and heavy fixing attachment methods.

• Compliance & Defect Prevention: Aligned with Building Regulations Approved Documents A (Structure), B (Fire Safety), C (Moisture), E (Acoustics), F, L (Energy Efficiency), O, and Regulation 7. Features an illustrated troubleshooting breakdown for common defects (e.g., core honeycombing, form bulging, misplaced reinforcement), a staged inspection checklist with hold points, a reference glossary, and FAQs.

For comparison with a conventional walling system, see our Masonry Construction Explained guide. The government’s Approved Document A provides technical guidance on structural walls.
