Strip foundation ground-bearing slab detail for a timber-frame wall

RTF-04 – Strip Foundation with Ground-Bearing Slab

£5.99

Use this strip foundation ground-bearing slab detail to coordinate the slab, damp-proofing, perimeter insulation, ground junction and airtightness at 1:10.



Planning your overall budget? Estimate the build cost of this design.

✅Always In Stock ✅Instant Downloads ✅Free Delivery on Printed Plans ✅14-Day Money Back Guarantee (details)

Want a sneak preview before you buy? Click here. To download a free set of house plans: Click here.

Category:

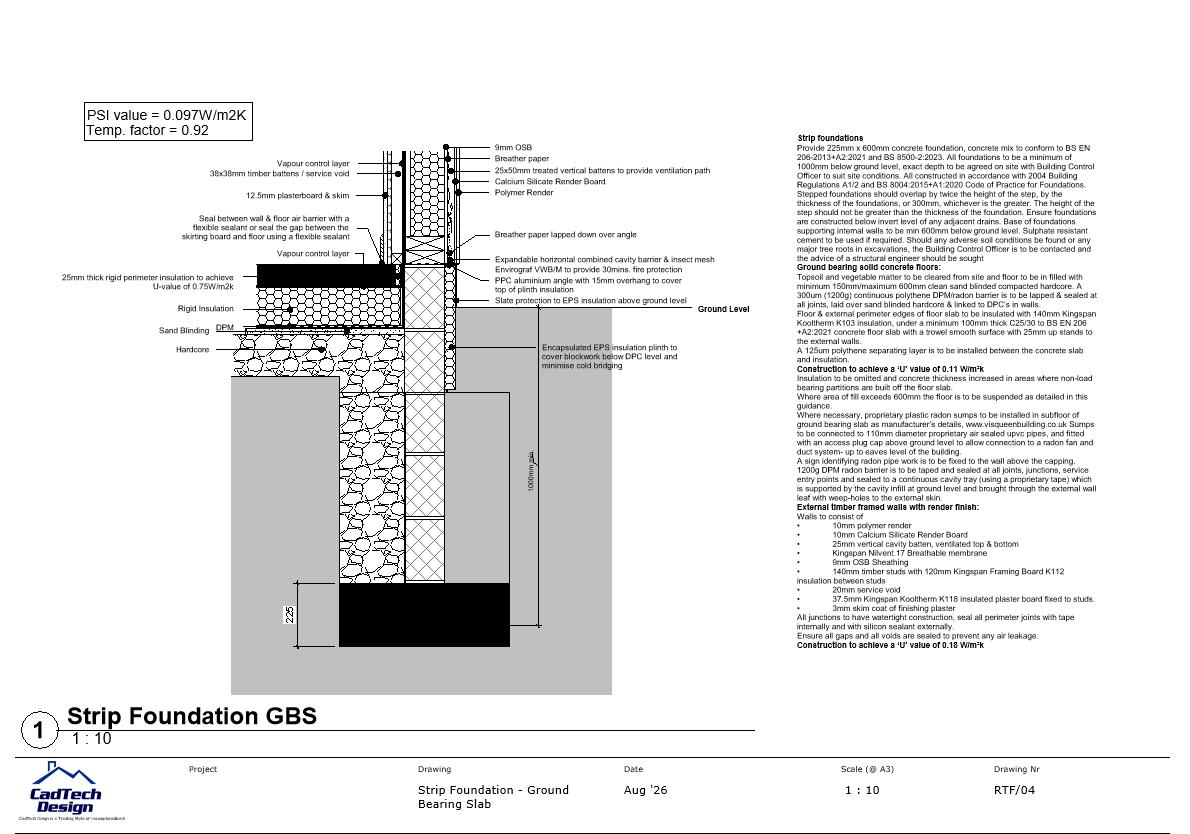

This strip foundation ground-bearing slab detail shows a rendered timber-frame external wall supported above an insulated concrete floor. The detail illustrates the foundation wall, floor slab, damp-proof membrane, insulation and perimeter thermal treatment. It also shows the external ground-level junction and continuity between the floor and wall airtightness layers. This detail is suitable for Building Regulations drawings, construction packages and practical site reference.

For a closely related junction, see our RTF-03 beam and block floor detail. Approved Document A provides official guidance on structural elements, including foundations, walls, floors and roofs.
