TB/05 – Internal Loadbearing Wall on Ground-Bearing Slab

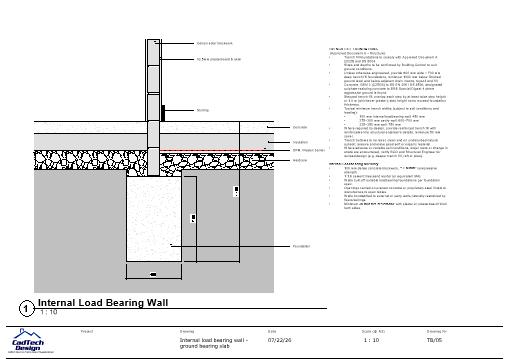

This internal loadbearing wall detail shows a masonry wall supported on an independent trench fill foundation through a ground-bearing concrete floor.

The drawing is intended for architectural designers, building professionals, contractors, developers and self-builders preparing a Building Regulations package or project specification.

For the adjoining external-wall construction, see our strip-foundation and cavity-wall detail. The wider structural context is set out in Approved Document A.

The detail shows:

• 100 mm internal loadbearing masonry wall
• Plasterboard and skim finishes to both sides
• Independent trench fill foundation beneath the wall
• Typical 450 mm foundation width
• Relationship between the wall, foundation and ground-bearing floor
• Concrete floor slab continuing on each side of the wall
• Floor insulation and compacted hardcore
• DPM and optional radon-barrier continuity
• Typical foundation depth and formation level
• Requirements for block strength and mortar
• Lateral restraint and bonding of the internal wall
• Lintel requirements over openings
• Indicative fire-resistance requirements
• Guidance covering adverse or variable ground conditions

The accompanying specification notes cover trench fill foundation construction, concrete specification, stepped foundations, unsuitable ground, reinforced foundations and internal loadbearing masonry requirements.

What This Internal Loadbearing Wall Detail Includes

• One downloadable PDF construction drawing
• A3 landscape sheet
• Drawn at 1:10 scale when printed at 100% on A3 paper
• Drawing reference: TB/05
• Detail title: Internal Loadbearing Wall – Ground-Bearing Slab

Important Information

This is a standard construction detail intended to provide general design and specification guidance. It must be reviewed and adapted to suit the particular building, wall loads, floor construction, site conditions, ground conditions, radon requirements and applicable Building Regulations.

Foundation width and depth, wall thickness, block strength and the loads carried by the wall must be confirmed for the individual project. Structural design should be undertaken by a suitably qualified structural engineer where required.

The drawing does not include project-specific structural calculations, foundation design, ground investigation, lintel calculations, SAP assessment or Building Regulations approval. Purchasing or using the detail does not guarantee approval by Building Control.

The PDF is supplied for use by the purchaser on their own projects. It may not be resold, redistributed, shared as a standalone product or reproduced for commercial resale without written permission.
