TR-05 – Internal Loadbearing Wall with Ground-Bearing Slab

This internal loadbearing wall slab detail shows a typical masonry wall supported on its own foundation where it passes through an insulated ground-bearing floor construction.

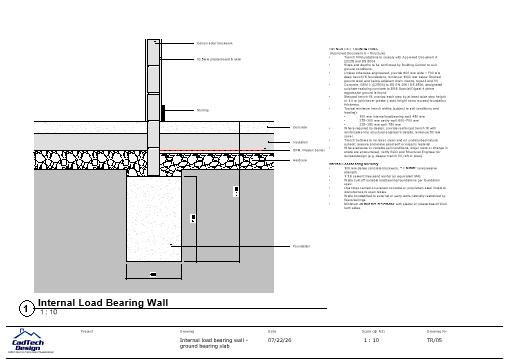

The drawing illustrates the relationship between the loadbearing wall, concrete floor slab, rigid insulation, damp-proof/radon membrane, compacted hardcore and concrete foundation. It provides a clear reference for maintaining the structural load path while coordinating the floor finishes and moisture-protection layers around the wall base.

A brickwork-version internal loadbearing wall detail is also available. For broader structural requirements, consult Approved Document A.

Supporting notes cover:

• Typical foundation dimensions and concrete specification.
• Foundation depth and bearing-ground requirements.
• Stepped foundations and variable ground conditions.
• Internal loadbearing masonry specification.
• Block strength and mortar requirements.
• Support over wall openings.
• Lateral restraint and connections to adjoining walls.
• Minimum fire-resistance provisions.
• Damp-proof and radon-barrier coordination.

The customer receives one downloadable PDF construction drawing, drawn at a scale of 1:10 and formatted for an A3 sheet.

The foundation size and depth must be confirmed for the actual wall loads and ground conditions. Block strength, concentrated loads, openings and structural reactions should be verified by the project’s structural engineer where applicable.
