CC-16 – Steel Beam Bearing, Padstone and Fire Protection Detail
£5.99
Coordinate a steel beam, padstone and fire-protection enclosure with this clear detail covering bearing, packing, restraint and junction treatment.
Planning your overall budget? Estimate the build cost of this design.
✅Always In Stock ✅Instant Downloads ✅Free Delivery on Printed Plans ✅14-Day Money Back Guarantee (details)
Want a sneak preview before you buy? Click here. To download a free set of house plans: Click here.

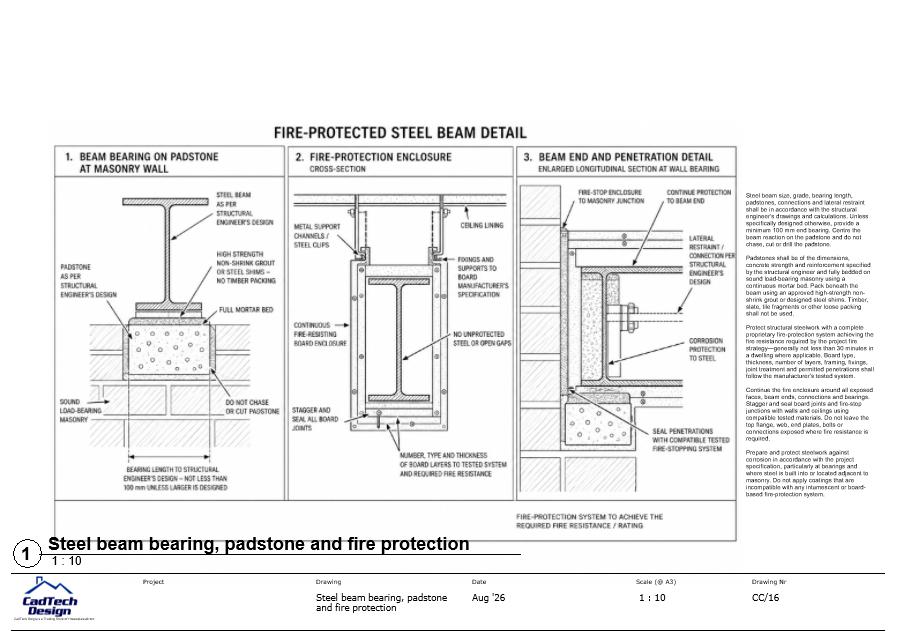

Steel beam bearing detail: This construction drawing coordinates a structural steel beam, concrete padstone and proprietary fire-protection enclosure within residential masonry.
The bearing detail shows the beam centred on a suitably designed padstone and fully bedded on sound load-bearing construction. It identifies minimum end bearing, high-strength non-shrink grout or engineered steel shims, while excluding unsuitable loose packing materials.
The fire-protection section shows a continuous board enclosure installed as a tested proprietary system. Notes cover board layers, joint treatment, fixings, lateral restraint, corrosion protection and fire-stopping at junctions, connections and bearings. Beam size, grade, padstone dimensions and structural connections must be confirmed by the structural engineer. For statutory structural guidance, see Approved Document A on GOV.UK, or coordinate service openings with our service-penetration fire-stopping detail.
